Section 1 / FeToolKit.com

Aerospace stress analysis software with finite element mechanics at its core.

FeToolKit started in the 1980s, following masters and doctorate studies in aerospace vehicle design and computational mechanics for non-linear finite element analysis of three-dimensional shell structures.

The original work focused on airships and hot-air balloons. The code has since morphed into a suite of over 100 stress analysis tools for the technical problems aerospace engineers face every day: load paths, shell behavior, joints, panels, pressure structures, buckling, margins, and defensible calculation records.

1980sResearch origin in aerospace vehicle design
100+Stress analysis modules and checks
3DShell, membrane, and structural mechanics

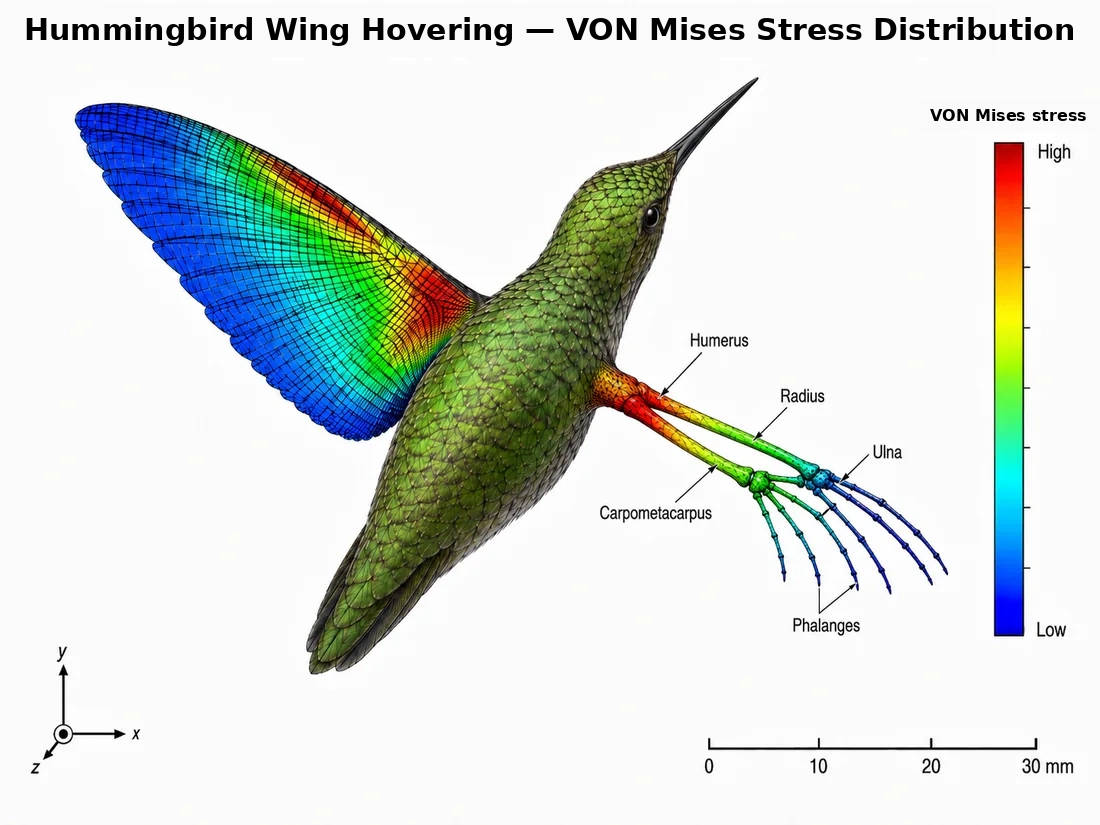

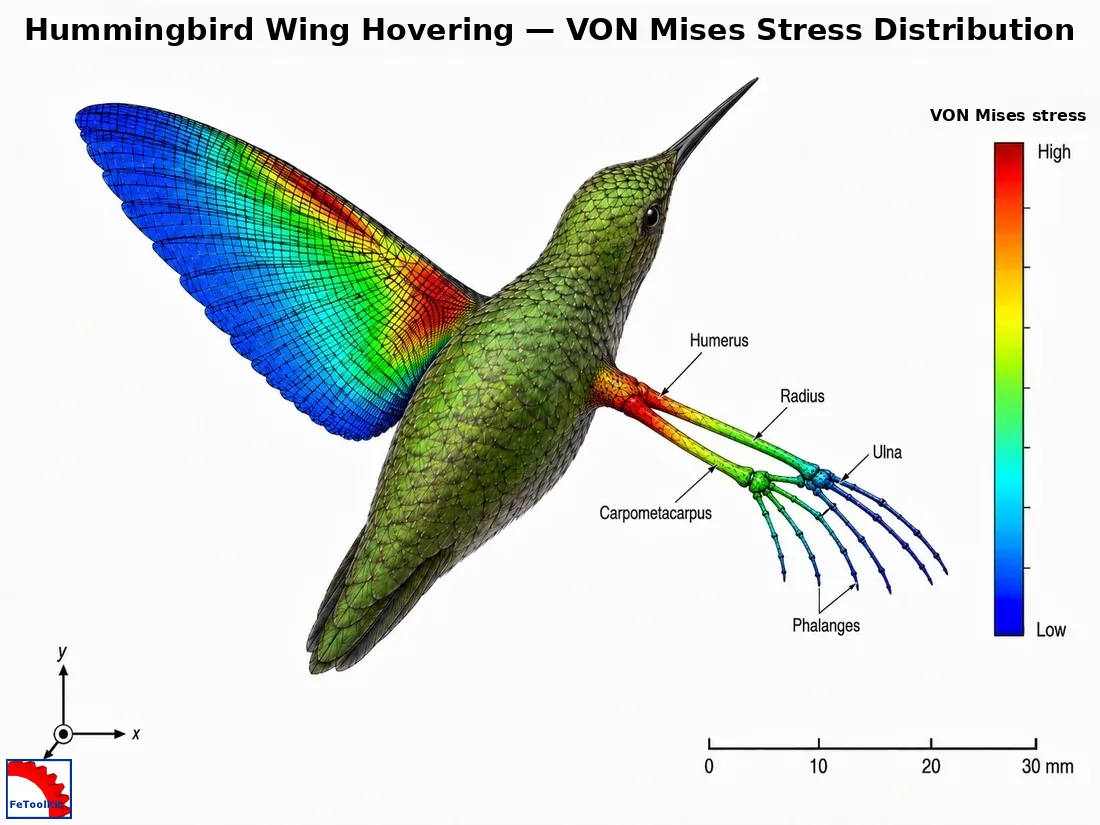

VON Mises stress visualization of a hummingbird wing showing finite element stress contours and exposed right-hand wing bones.
VON Mises Stress

Section 2 / finite element mechanics

Non-linear finite element analysis for three-dimensional shell structures.

FeToolKit is positioned around rigorous shell and stress analysis mathematics, with practical workflow tools for engineers who need traceable answers quickly.

Kinematics and strain

Large displacement shell behavior begins with deformation measures that remain valid when geometry changes the stiffness.

F = ∂x / ∂X,   E = 1/2 (FTF - I)

Principle of virtual work

Internal and external work terms are assembled into a residual and driven to equilibrium.

δW = ∫Ω δεTσ dΩ - ∫Ω δuTb dΩ - ∫Γ δuTt dΓ = 0

Shell resultants

Three-dimensional stress states reduce to membrane and bending quantities that map directly to aerospace checks.

N = ∫-t/2t/2 σ dz,   M = ∫-t/2t/2 zσ dz

Stress recovery and margins

Field solutions become design decisions through equivalent stress, ratios, factors, and margins of safety.

σvm = sqrt(σx2 - σxσy + σy2 + 3τxy2),   MS = σallowapplied - 1
1Idealize geometry, material, boundary conditions, and load cases.
2Assemble element stiffness, stress resultants, and global residuals.
3Iterate with tangent stiffness until force and displacement norms converge.
4Recover stresses, compute margins, and document assumptions.

Section 3 / stress analysis toolkit

Over 100 tools for recurring aerospace engineering problems.

The suite is organized around the checks engineers repeat daily. Each tool should turn inputs, assumptions, and theory into a clear engineering result.

Panels and stiffened shells

Compression, shear, bending, pressure, combined loading, local instability, and stiffener interaction.

D = Et^3 / 12(1 - ν^2)

Joints, fasteners, and fittings

Bearing, bypass, tear-out, net-section, lug, pin, bolted-joint, and fitting load transfer checks.

σbr = P / td

Beams, frames, and columns

Section properties, shear flow, bending stress, torsion, column buckling, crippling, and interaction ratios.

P / Pcr + M / Mallow ≤ 1

Pressure and membrane structures

Hoop stress, meridional stress, fabric loads, pressure-vessel checks, and envelope attachment load paths.

σθ = pr / t

Buckling and stability

Eigenvalue buckling, knockdown factors, shell sensitivity, panel crippling, and slender member stability.

(K + λKG)φ = 0

Thermal and material effects

Thermal strain, material knockdowns, stiffness changes, elastic allowables, and design sensitivity studies.

εth = αΔT

Composite and laminate checks

Orthotropic stiffness, transformed plies, laminate resultants, failure indices, and directional margins.

N = Aε0 + Bκ

Loads and margins

Limit and ultimate loads, reserve factors, margin of safety reports, and consistent calculation templates.

RF = allowable / applied

Engineering documentation

Reusable assumptions, equations, units, references, load cases, and audit-ready calculation summaries.

MS = RF - 1
01

CFRP Laminate structure MRB analysis and reporting on manufacturing or in-service defects.

CFRP laminate impact damage diagram showing impact location, surface buckling, delamination, matrix cracks due to shear, and matrix cracks due to bending.
02

Loading parametric study creating Potato plots of stress, strain, loading and deformation.

Wing spar stress envelope plot showing a FeToolKit potato plot of combined yield loading stress with scatter points and FeToolKit logo.
03

NASA checks on bolted joint integrity to 'NASA-STD-5020'.

Bolted joint integrity diagram showing washer, joint grip, bolt grip, thread pitch, lead threads, and required clearances for NASA-STD-5020 style checks.
04

Buckling, Crippling, Fatigue and Damage Tolerance Analysis.

Fatigue stress cycle diagram showing cyclic stress variation with mean stress, maximum stress, minimum stress, amplitude, and stress range over time.
05

Stress Concentration Analysis.

Finite element stress concentration contour plot around a circular hole showing local high stress bands around the cut-out and lower stress fields away from the hole.
06

Tension Fitting and Lug Analysis.

Tension fitting and lug analysis diagram showing double-sided machined angle, formed angle with side support, machined angle, corner fitting, rectangular pad washer, and tapered leg and foot examples.

Subsection 3.1 / FeToolKit program screens

See the software environment, menus, and specialist engineering modules.

Below are representative FeToolKit program screens showing the interface used for finite element import, stress analysis workflows, composite repair utilities, fastener calculations, and results-led engineering assessment. This subsection helps visitors understand that FeToolKit is not only a theory-driven toolkit, but also a practical production environment for day-to-day aerospace structural work.

What this subsection demonstrates

FeToolKit combines a long heritage of aerospace stress analysis with a task-focused software interface. The screenshots illustrate both the broad menu-driven toolkit and dedicated problem pages built for common engineering checks.

  • 1Integrated workflow: geometry, mesh, loads, constraints, solver setup, results review, and reporting are organized into an efficient engineering process.
  • 2Specialist tools: menus expose targeted modules for composites, defect assessment, panel checks, fasteners, joints, finite element utilities, and technical reporting.
  • 3Calculation depth: dedicated pages support practical data entry, design factors, loading variables, allowable strength checks, and engineering margins.
  • 4Aerospace relevance: the emphasis remains on the recurring structural problems aerospace engineers solve every working day.
FeToolKit software shown on a laptop with a modern engineering workspace, displaying a structural analysis model and results interface.
Modern workspace view. A contemporary FeToolKit environment presenting model navigation, setup controls, solution management, and results visualization within a single engineering workspace.
FeToolKit Stress Analysis Toolkit screen with the Composites Tools menu open, showing laminate defect, buckling, bond line repair, perforate damage, fastener, panel analysis, and MRB options.
Composite tools menu. This screen shows the breadth of composite-focused capability, including laminate defect assessment, buckling, perforate damage, fastener options, flat and curved panel analysis, and MRB database/report functions.
FeToolKit screen showing the Bond Line Repair submenu under Composites Tools, with scarf repair, partial scarf repair, doubler, borat, mesh stiffness, and joint stiffness options.
Bond line repair utilities. A dedicated submenu for scarf repair, partial scarf repair, doublers, borat-style checks, mesh stiffness, and joint stiffness — reflecting the practical repair-analysis orientation of the suite.
FeToolKit menu showing Stress Analysis Tools with options such as section analysis, fasteners analysis, buckling analysis, contact, loading, fatigue, damage tolerance, lugs, tension fittings and clips, and other user tools.
Stress analysis tool access. The classic menu-driven structure exposes section analysis, fastener analysis, buckling, fatigue, damage tolerance, lugs, fittings, and additional engineering/user tools for rapid technical problem solving.
FeToolKit 2D Fastener Check page showing a NASA-based fastener analysis form with material selection, geometry, design factors, loading variables, and allowable joint strength sections.
Detailed fastener module. This application page shows a structured calculation workflow for a 2D fastener check, including material selection, geometry, load inputs, design factors, and allowable joint strength evaluation.

Section 4 / aerospace applications

From airship envelopes to everyday aircraft structural analysis.

The original research challenge was demanding: large flexible shells, pressure-stabilized forms, fabric and membrane behavior, attachment loads, and geometry-dependent stiffness. That background translates naturally to rapid aerospace stress calculations.

Airships

Envelope membrane loads, frames, hardpoints, fins, and pressurized shell response.

Hot-air balloons

Fabric stress, gore geometry, pressure, thermal effects, suspension, and load introduction.

Aircraft structures

Panels, beams, fittings, frames, skins, stiffeners, pressure shells, and local details.

Surface equilibrium:   ∇s · N + p n + q = 0
Combined loads:   (Nx/Nx,allow)a + (Nxy/Nxy,allow)b ≤ 1
p Nx, Nxy

Section 5 / memorable people

The people behind the analysis matter as much as the equations.

FeToolKit has grown from advanced aerospace research into a practical engineering toolkit through the influence of researchers, authors, mentors, stress engineers, software developers, reviewers, and users who cared about structural integrity.

A living record of engineering contribution.

This section is prepared as a dedicated place to recognise the people who shaped the FeToolKit story: the academic origins, the early finite element work, the aerospace design problems, the practical stress-analysis methods, and the engineers who challenged, checked, and improved the tools over time.

Names, photographs, dates, short biographies, publications, project memories, and personal acknowledgements can be added here as the site develops.

Engineering legacy

Good software carries forward judgement, validation, method, and memory.

Legacy = research + verification + judgement + mentorship
Portrait supplied for Bruce Irons profile

Computational mechanics / finite elements

Bruce Irons

Remembered here as a non-conforming engineering scientist whose work helped define the vocabulary and practice of computer-age structural analysis.

His contribution is associated with wave-front solvers, isoparametric elements, shape-function subroutines, serendipity elements, semiloof shells, and patch-test thinking — ideas that became familiar to generations of finite element and aerospace structural engineers.

Wave-front solvers Isoparametric elements Patch test Semiloof shells
Group photograph supplied for Michael C. Y. Niu's memorable people profile, taken during the Shanghai COMAC C919 programme.
Shanghai · COMAC C919 programme. Steve and Michael Niu are shown centre-right during the C919 development phase, capturing a project context linked to structural-analysis methodology, sizing work, and certification-basis discussion.

Author / airframe stress analysis

Michael C. Y. Niu

Author · Airframe Stress Analysis and Sizing · Conmilit Press.

Michael C. Y. Niu, formerly a senior structural engineer at Lockheed and Boeing, is the author of the standard reference texts Airframe Stress Analysis and Sizing and Airframe Structural Design, used worldwide as practical handbooks of commercial aircraft structural engineering.

During the COMAC C919 development programme, Steve worked alongside Michael and the COMAC engineering team in Shanghai on structural-analysis methodology, sizing approach, and certification-basis questions, drawing directly on methods Michael had codified through a four-decade career in commercial aircraft stress engineering.

COMAC C919 Shanghai Airframe Stress Analysis Certification Basis
Full-size photograph of Roger and Con together at Aeritalia, Naples, 1982.
Aeritalia · Naples · 1982. Roger and Con shown together in a full-size historic photograph from Aeritalia in Naples.

Memorable people / aerospace heritage

Roger and Con

Aeritalia · Naples · 1982.

This photograph records a memorable aerospace-engineering connection from the early 1980s. It reflects the professional environment and personal relationships that helped shape the structural-analysis experience behind the FeToolKit journey.

Roger Con Aeritalia Naples 1982
Full-size photograph of Con and Steve together at Aeritalia, Naples, 1982.
Aeritalia · Naples · 1982. Con and Steve shown together in a full-size historic photograph from Aeritalia in Naples.

Memorable people / aerospace heritage

Con and Steve

Aeritalia · Naples · 1982.

This full-size photograph captures Con and Steve during the Aeritalia period in Naples in 1982. It adds another personal and professional connection to the FeToolKit story, reflecting the people, places, and early aerospace experiences that contributed to the structural-analysis heritage behind the programme.

Con Steve Aeritalia Naples 1982
01

Founding researcher

The masters and doctorate studies that began the non-linear finite element work for three-dimensional shell structures, airships, and hot-air balloons.

02

Academic mentors

Supervisors, lecturers, examiners, and research colleagues who helped shape the mathematical basis, computational mechanics, and structural idealisation methods.

03

Aerospace stress engineers

Engineers who worked through real load cases, margins, reports, joint details, fasteners, panels, buckling checks, and practical certification questions.

04

Software contributors

Programmers, testers, interface builders, spreadsheet authors, and calculation-tool developers who turned theory into repeatable engineering workflows.

05

Reviewers and checkers

The careful people who reviewed assumptions, checked units, challenged allowables, verified equations, and improved confidence in the final answers.

06

Users and collaborators

The daily users whose engineering problems, feedback, and persistence helped the code evolve into a suite of more than 100 stress-analysis tools.

Suggested future update: continue adding named profiles, photographs, career notes, publications, project memories, and personal acknowledgements for the memorable people you want to honour.

Section 6 / contact

Discuss FeToolKit for aerospace stress analysis.

For technical enquiries, demonstrations, licensing, calculation validation, or integration discussions, contact FeToolKit directly.
